Land Pride BGE2400

New Products / Land Pride / Material Handling / BG2400 & BGE2400 Bale Grabbers / BGE2400

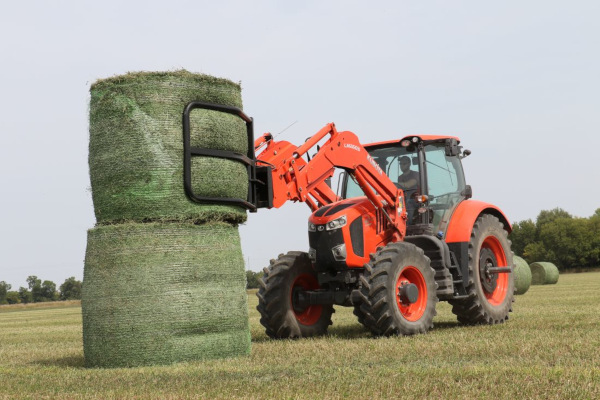

Land Pride BGE2400 for sale at H&M Equipment Co., Inc. New York

Double tap to zoom

Land Pride BGE2400 for sale at H&M Equipment Co., Inc. New York



Features

Features Benefits
Quick Attach Hitch (BG2400) Fits skid steer, track loaders, and tractor loaders with a universal quick attach hitch.
Euro Hitch (BGE2400) Fits tractor loaders with a Euro hitch.
0" to 92 1/2" arm tip opening Can easily pick up round bales up to 72" diameter.
Greasable 1 1/4" pivot pins Heavy built greasable pivot pins last a long time.
3" Bore hydraulic cylinder Large 3" bore cylinder provides excellent arm squeezing forces to grip large bales.
Arms are constructed of heavy
round and square tubing		 Grab arms are built strong to withstand bending forces.
Round tubing is gentler when handling wrapped bales.
Back Stop Helps stop the bale from rolling down the loader arms onto the operator.
Options
Hydraulic cylinder without valve Works well for power units that maintain grip pressure.
Hydraulic cylinder with valve Protect against oil seeping out of the system and loss of hydraulic pressure.
Keeps constant hold pressure on the bale.
Skid steer hose kit Used to couple BG2400 Bale Grabber to skid steers and track loaders.
Tractor hose kit (24' hoses) Long enough to reach to the tractor’s rear couplers. Excellent choice when the tractor
front loader does not have couplers mounted at the front of the loader.
Third function hose kit (5' hoses) Provides easy hydraulic hook-up and disconnect at the front of tractor loaders equipped
with a 3rd function valve.
Kubota Accessory
Kubota SVL Hose Stay #S6689
or SSV Hose Stay #77700-07225		 Keeps hydraulic hoses out of the hinged hitch plate area. Eliminates hose damage.
Purchase hose stay kits through your nearest Kubota dealer.

Specifications

Model BGE2400
Hitch type Euro
Closed inside arm width 37 1/4"
Closed arm length 57"
Maximum tip opening width 92 1/2"
Bale Capacity maximum diameter
maximum weight		 Up to 72"
2400 lbs.
Pivot pins 1 1/4" Greasable
Hydraulic cylinder 3" x 16" x 1 1/2" Rod
Hydraulic pressure rating 3500 psi
Weight without options 605 lbs.
Weight of Options
Hydraulic cylinder without valve 40 lbs.
Hydraulic cylinder with valve 30 lbs.
Skid steer hose kit Not Available
Tractor hose kit (24' hoses) 40 lbs.
Third function hose kit (5' hoses) 10 lbs.
