H&M Equipment Co., Inc. New York

Land Pride CSR1048

New Products / Land Pride / SCL Attachments / CSR10 Series Compact Powered Rakes / CSR1048

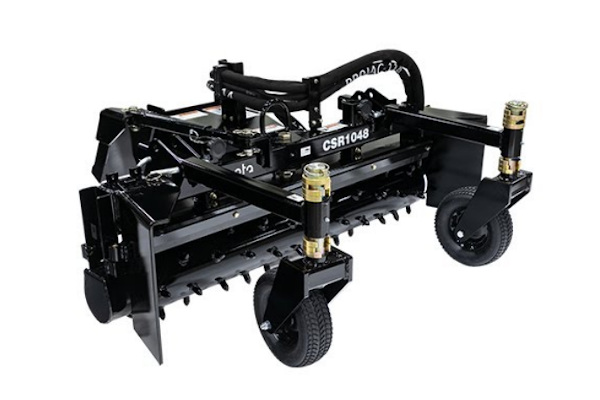

Land Pride CSR1048 for sale at H&M Equipment Co., Inc. New York

Double tap to zoom

Land Pride CSR1048 for sale at H&M Equipment Co., Inc. New York



Features

Features Benefits
CII Quick-Attach Hitch Fits most compact utility loaders.
48" (1.22 m) Working width Will cover the tracks of most compact utility loaders
Rake can be angled left or right up to 25 degrees Angling windrows large rocks and debris to one side for easy collection. Non-floating hitch allows down pressure to be applied while raking.
Angling adjustment: 25 degrees left & right Angling allows proper flow of material to be windrowed for easy collection of large rocks and debris.
Angle options Hydraulic actuator
Manual telescoping link		 Allows operator to change rake angle from the seat.
Priced right for operators who seldom change the rake angle
Battery connect with switch wire harness option Connects to the compact utility loader battery.
3/4" x 1 1/2" Carbide tipped stud roller Carbide tipped studs are very tough, used in the mining industry, and offer a long life. Studs can be replaced one at a time.
Adjustable gauge wheels with factory installed sealant Easy to adjust vertically to set working depth. Has tall and wide tires that keep turning in fluffy soil. Sealant helps seal against punctures.
Side wings with storage Side wings can be used to hold dirt to aid in filling low spots. Can easily store the wings on the Powered Rake so that they are always with the rake when needed.
Two material control blades Material control blades determine what size of material to let pass through the roller and what size to move to the side. Two blades allow for forward and reverse roller rotation.
Bi-directional roller Can be operated traveling forward or backward.
Variable roller speed
224 rpm at 10 gpm
449 rpm at 20 gpm		 Variable roller speed is controlled by the compact utility loader and can be used in tight areas to lessen the possibility of flying debris
Motor guard Protects the motor and hydraulic fittings from wear caused by running in the dirt.
End bearing cover Protects the roller bearing from wear and dirt invasion.

Specifications

Specifications & Capacities CSR1048
Weight with manual angle Option 505 lbs (230 kg)
Weight w/ hydraulic angle Option 548 lbs (249 kg)
Hydraulic flow requirements 10-20 gpm (38-76 Lpm)
Hydraulic pressure range 3000 psi (20.7 MPa)
Hydraulic couplers 1 male/1 female
Hitch Type CII Quick-Attach
Non-angled working width 48" (122 cm)
Angled working width 43" (109 cm)
Overall angled width 54" (137 cm)
Direction of travel Bi-directional
Material control blade 2 each - 1/2" x 2 1/2" (1.3 cm x 6.4 cm) urethane
Spike roller 6 5/8" (16.8 cm) Dia. with 3/4" x 1 1/2" (1.9 cm x 3.8 cm) carbide tipped studs.
Roller speed 224 rpm at 10 gpm and 449 rpm at 20 gpm
Roller end bearing Spherical roller bearing, 1 1/2" inside diameter.
Side Wings Standard, removable with storage location.
Gauge wheels Two each 4-ply tubeless with sealant and 3/4" ball bearings and spacer height adjustment.
OPTIONS
Seven position manual angle Angles twenty five degrees left or right in increments of 8.67 degrees
Hydraulic angle 2" x 6" Cylinder with solenoid valve.
Angles left or right up to twenty five degrees.
Battery connect wire harness Battery connect power with two push button switch for hydraulic angling.
